EXH bag manufacturing and filling machines with a high speed and a final volume of 100 ml for manufacturing C-Pack and Doypack three and four sides sewn bags

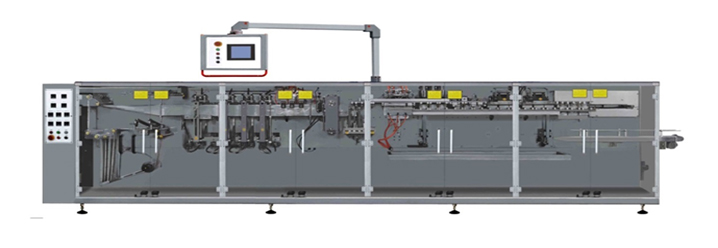

EXH horizontal continuous bag manufacturing and filling machine
EXH-270T
EXH-360Q
Machine function and packaging parameters
Bag type
Simple
Type of consuming film
Different laminated films
Minimum bag size
50*70 mm
Maximum bag size
90*220mm
90*180 mm
Product volume
100 ml
Machine speed
180-220 bags/min
No. of filling stations
2
Standard facilities
Product outgoing conveyor belt, Cold Emboss, No bag – No fill
Facilities which can be ordered
Aseptic Device , Antistatic , CIP , Anti – Dropping Filling
Conditions
Necessary power
10.5 kw
14 kw
Necessary air
400 l/min
300 l/min
Ambient temperature
-10°C to +55℃
Relative humidity
Maximum 85%
Electric data
380 W/50 Hz (to be changed based on the order)
Machine specifications
Machine dimensions (length*width*height)
1360*970*5650 mm
1360*970*7050 mm
Machine weight
2300 Kg
2500 Kg
It is controlled by engine server. Durable and safe, easy adjustments, suitable for filling powdered products
Piston pump
Suitable for liquid, thin and thick products
These fillers are capable to measure and to fill the products
Suitable for filling fine granules
