EXM-240D bag manufacturing and filling machines with a high speed and a final volume of 200 ml for producing C-Pack and Doypack non-standing zipper and middle opening bags
EXM-240D horizontal continuous bag manufacturing and filling machine
EXM-240D (standing )
EXM-240DZ ( zipper standing)
EXM-240DC1
(middle opening standing/oblique)
Machine function and packaging parameters

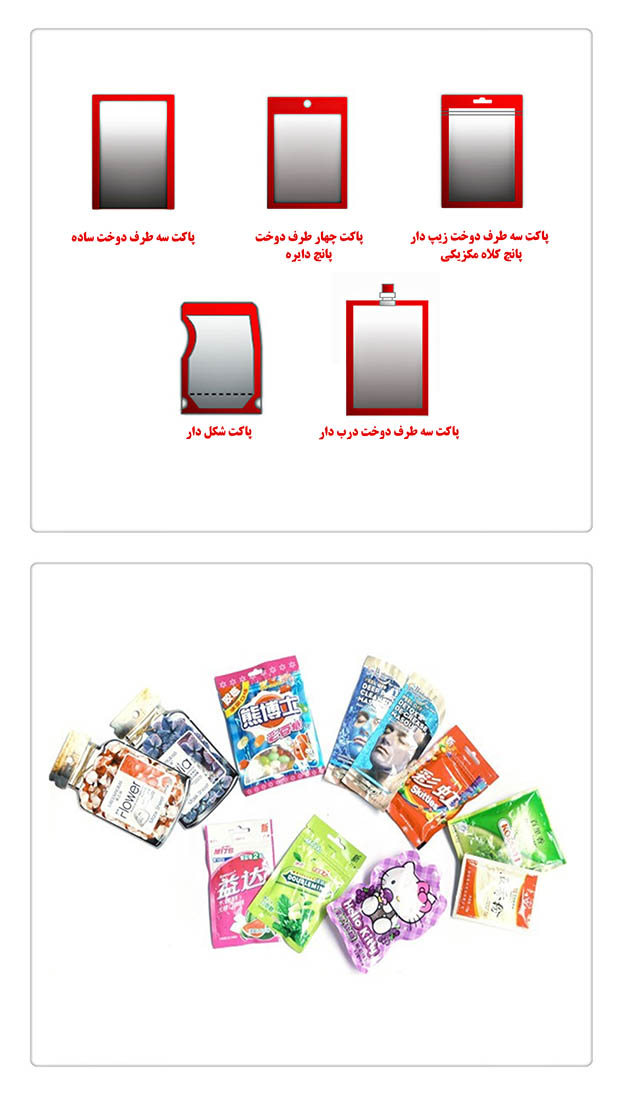

Bag type
Simple
Simple/zipper
Simple/middle opening
Type of consuming film
Different laminated films
Minimum bag size
70*100 mm
Maximum bag size
120*225 mm
Product volume
200 ml
Machine speed
120-160 bags/min
No. of filling stations
2
Standard facilities
Product outgoing conveyor belt, Cold Emboss, No bag – No fill
Facilities which can be ordered
Aseptic Device , Antistatic , CIP , Anti – Dropping Filling
Conditions
Necessary power
6.5 kw
7.5 kw
Necessary air
350 l/min
400 l/min
Ambient temperature
-10°C to +55℃
Relative humidity
Maximum 85%
Electric data
380 W/50 Hz (to be changed based on the order)
Machine specifications
Machine dimensions (length*width*height)
1450*970*5300 mm
1450*970*6100 mm
Machine weight
1900 Kg
2100 Kg
It is controlled by engine server. Durable and safe, easy adjustments, suitable for filling powdered products
Piston pump
Suitable for liquid, thin and thick products
These fillers are capable to measure and to fill the products
Suitable for filling fine granules
