EXS/240 bag manufacturing and filling machines with a medium speed and a final volume of 1000 ml and EXS-240D series with a high speed and a volume of 180 ml for manufacturing C-Pack and Doypack three and four sides sewn bags
Horizontal continuous bag manufacturing and filling machine (series EXS-240)
EXS-240
EXS-240D
Machine function and packaging parameters

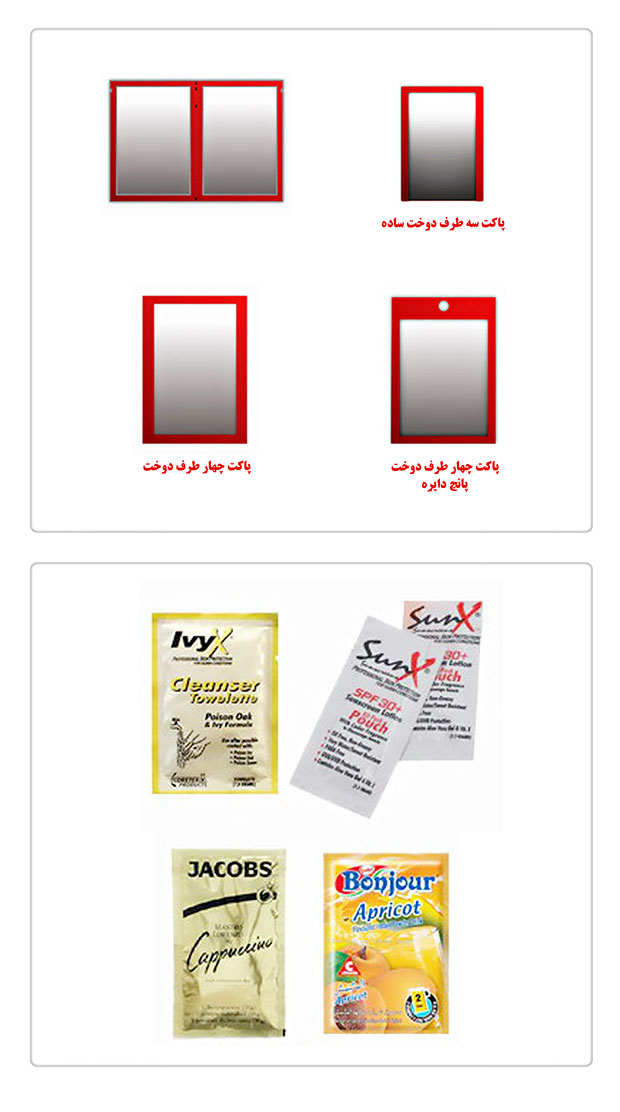

Bag type
Simple/three and four sides sewn
Type of consuming film
Different laminated films
Minimum bag size
100*120 mm
70*100 mm
Maximum bag size
240*320 mm
120*225 mm
Product volume
1000 ml
180 ml
Machine speed
60-80 bags/min
60-160 bags/min
No. of filling stations
2
Standard facilities
Product outgoing conveyor belt, Cold Emboss, No bag – No fill
Facilities which can be ordered
Aseptic Device , Antistatic , CIP , Anti – Dropping Filling
Conditions
Necessary power
5.5 kw
Necessary air
300 l/min
Ambient temperature
-10°C to +55℃
Relative humidity
Maximum 85%
Electric data
380 W/50 Hz (to be changed based on the order)
Machine specifications
Machine dimensions (length*width*height)
1500*1120*4600 mm
1450*970*4900 mm
Machine weight
1800 Kg
1900 Kg
It is controlled by engine server. Durable and safe, easy adjustments, suitable for filling powdered products
Piston pump
Suitable for liquid, thin and thick products
These fillers are capable to measure and to fill the products
Suitable for filling fine granules
